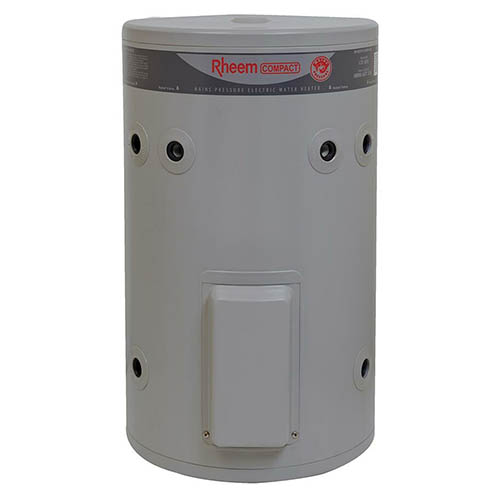

Rheem Compact 47L Electric Water Heater

Rheem Compact 47 has been specifically designed for fast and easy installation.

Its compact size makes it the perfect choice when replacing water heaters underneath the kitchen bench, in cupboards, or in the laundry. And with dual handed fittings and recessed plugs it can be rotated to fit into tight spaces.


  • The most compact available in the over-40L capacity range
  • Just 670mm HIGH (including anode cap)
  • One of the smallest diameters on the market – 400mm
  • 45L Delivery – Rated hot water delivery is 40L in accordance with AS/NZS4692.1. Actual delivery is 47L when tested to AS/NZS4692.1.
  • Designed for restricted space installations
  • Dual Handed – easier to install
  • Available in 3.6kW rating
  • Recessed Plug Fittings


  • 7 year cylinder warranty*
  • 3 years labour warranty on the cylinder*
  • 1 year parts and labour warranty on all other components for domestic (non-commercial) installations*

*Warranty conditions apply.”


  • MODEL 191045
  • Hot Water Delivery 47L
  • kW Rating 3.6
  • Relief Valve Pressure (kPa) 1400
  • Expansion Control Valve (kPa) 1200
  • Max Water Supply Pressure:
    • With ECV (kPa) 960
    • Without ECV (kPa) 1120
  • Water Connections Rp 3/4
  • Approx. Weight (packaged) 25kg
